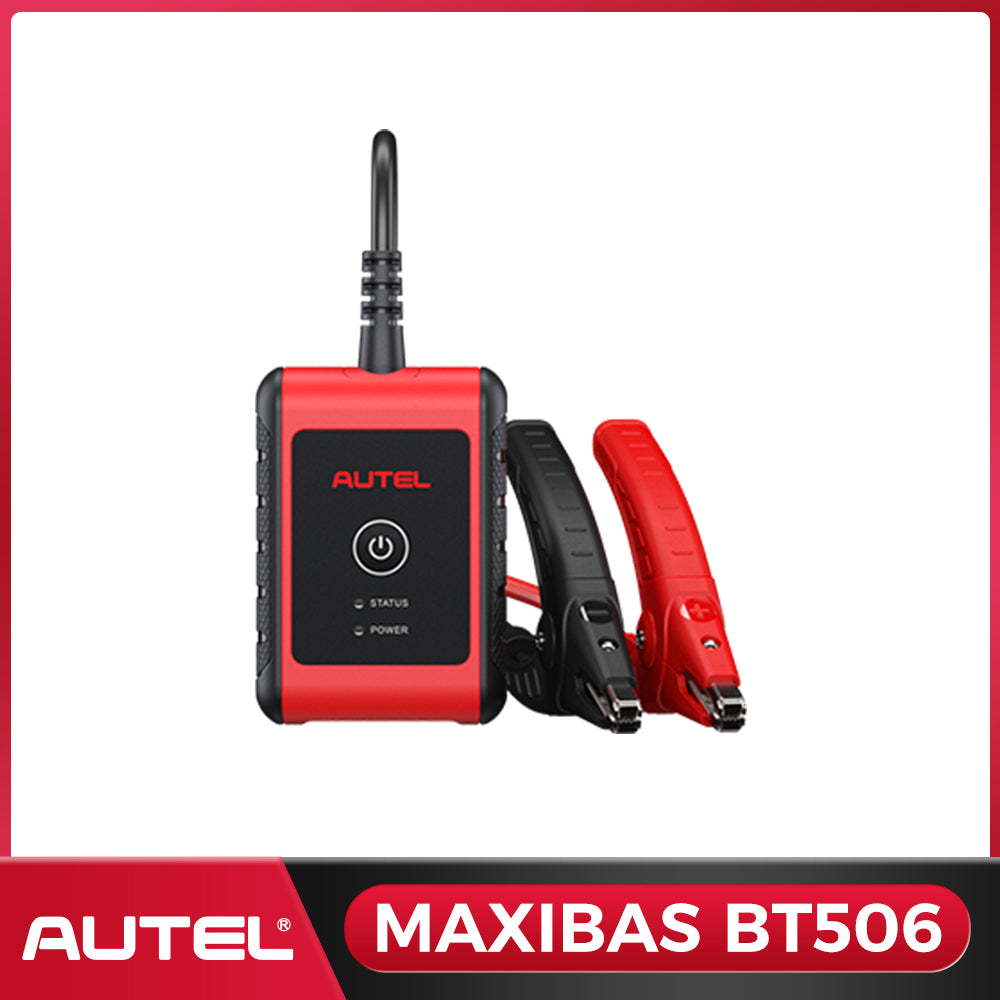

Autel MaxiBAS BT506 is CCA CA SAE EN IEC DIN JIS MCA compliant, supports in-vehicle and out-of-vehicle testing, and tests submerged AGM AGM spiral EFB gels. It can also be used with the Autel MaxiSys range of equipment.

The BT506 is a battery and electrical system analysis tool that uses an advanced battery analysis method as adaptive conductance to more accurately check the battery's cold-crank capability and reserve capacity, which are critical for determining the true state of the battery health. The BT506 enables technicians to view the health of the vehicle's battery and electrical system. Download the free and easy-to-use mobile app for iOS and Android devices to use with the BT506 to perform tests and display test results.
€131,00
€131,00
PayPal Visa Mastercard American Express pay later with klarna
free shipping by UPS, DHL or FedEx
Model: BT506
BT506 BT608 BT608E
MaxiBAS BT506

MaxiBAS BT506

€131,00
MaxiBAS BT506
MaxiBAS BT506
MaxiBAS BT506
MaxiBAS BT506

MaxiBAS BT506

€131,00

    Autel MaxiBAS BT506 Auto Battery&Electrical System Analysis Tool,Compatible with CCA CA SAE EN IEC DIN JIS MCA, Support in-Car and Out-of-Car Testing,Test Flooded AGM AGM Spiral EFB Gel



    About Autel MaxiBAS BT506
    ? Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
    ? Test 6- and 12-volt batteries: 100 - 2000 CCA
    ? Test 12- and 24- cranking/charging systems
    ? Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
    ? Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA

    ItemDescription
    ConnectivityUSB 2.0, Type C
    Bluetooth   V3.0 BR/EDR+ V4.2 LE Dual-Mode
    Input Voltage5 V DC
    Working Current< 150 mA at 12 V DC
    Internal BatteryN/A
    CCA Range100 to 2000 A
    Voltage Range6 to 36 V
    Working Temperature-10��to 50�� C (14�� to 122�� F)
    Storage Temperature-20�� to 60�� C (-4�� to 140�� F)
    Dimension (L x W x H)107 mm (4.21��) x 75 mm (2.95��) x 26 mm (1.02��) (clamp   cable not included)
    Weight320 g (0.7 lb.)
  • Description

    • Autel MaxiBAS BT506 Auto Battery&Electrical System Analysis Tool,Compatible with CCA CA SAE EN IEC DIN JIS MCA, Support in-Car and Out-of-Car Testing,Test Flooded AGM AGM Spiral EFB Gel



    About Autel MaxiBAS BT506
    ? Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
    ? Test 6- and 12-volt batteries: 100 - 2000 CCA
    ? Test 12- and 24- cranking/charging systems
    ? Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
    ? Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA

  • Specifications
    • ItemDescription
    ConnectivityUSB 2.0, Type C
    Bluetooth   V3.0 BR/EDR+ V4.2 LE Dual-Mode
    Input Voltage5 V DC
    Working Current< 150 mA at 12 V DC
    Internal BatteryN/A
    CCA Range100 to 2000 A
    Voltage Range6 to 36 V
    Working Temperature-10��to 50�� C (14�� to 122�� F)
    Storage Temperature-20�� to 60�� C (-4�� to 140�� F)
    Dimension (L x W x H)107 mm (4.21��) x 75 mm (2.95��) x 26 mm (1.02��) (clamp   cable not included)
    Weight320 g (0.7 lb.)
  • Video

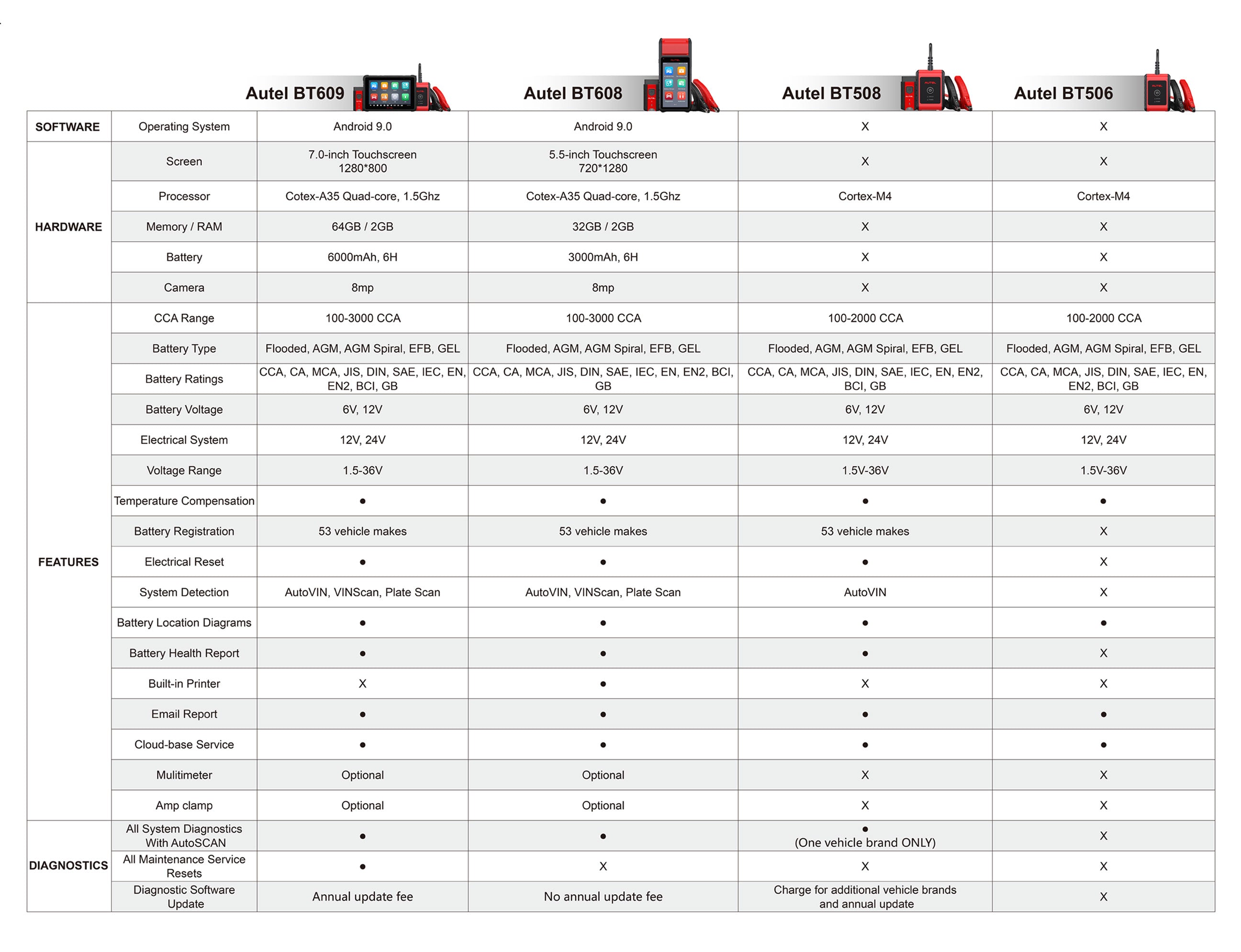

  • Comparison
