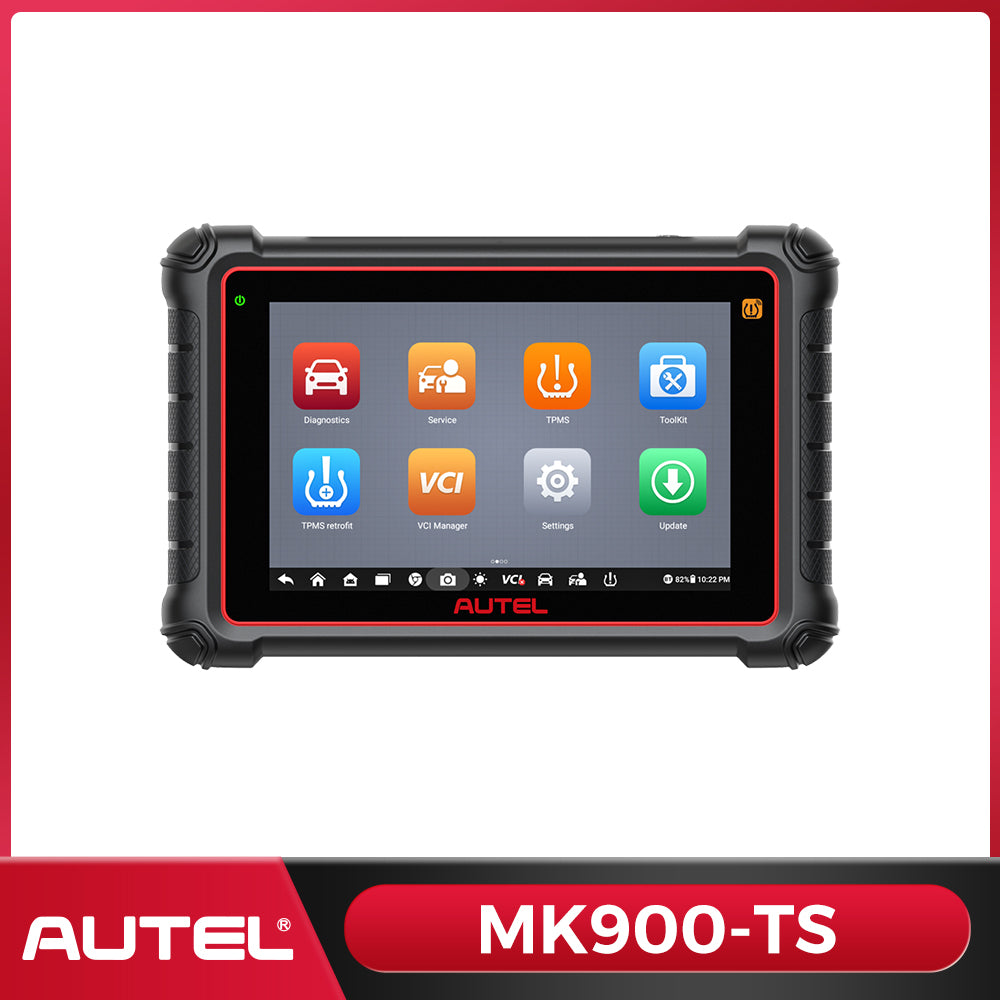

MaxiCOM MK900-TS

Name: MaxiCOM MK900-TS
Brand: AUTEL
SKU: AT52110409
Price: 699.0 EUR
Availability: InStock

AUTOMOTIVE DIAGNOSIS SYSTEM

Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MaxiCOM MK900-TS provides superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), and BMS (Battery Management System). In addition to OBDII diagnostics and special functions, MK900-TS can perform comprehensive TPMS services with ease.

Product variants

Model: MK900-TS

MK900 MX900 MK900-TS MP900-BT KIT MP900 MP900-TS MP900E KIT

· Extensive vehicle coverage for U.S., Asian, and European vehicle makes
· Exceptional OE-Level system for all electronic systems
· Excellent functions for reading codes, live data, ECU information and performing active test, adapation, and matching, etc.
· Features DoIP and CAN FD protocols
· Smart AutoVIN technology for identifying vehicles easily
· Automatic system and software updates with real-time push notifications through the Internet
· Instant remote control tech support anytime and anywhere
· Advanced TPMS diagnostics with DTC description
· TPMS status, one step for complete TPMS health check
· Activate all known TPMS sensors
· Program AUTEL MX-Sensor
· Comprehensive OBD relearn coverage
· On-screen relearn procedure
· One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
· Supports Pre & Post Scan

Description

Specifications

Comparison

Downloads

Accessories

Reviews

Operating System	Android 11
Processor	Quad core Processor(1.8GHz)
Memory	4GB RAM & 64GB ROM
Display	8-inch LCD capacitive touchscreen with 1280x800 resolution
Rear Camera	8 MP
Connectivity	USB Type-C
	USB 2.0
	Wi-Fi
	Bluetooth
	Mini SD card (supports up to 64GB)
Audio Input/Output	Input: N/A
Audio Input/Output	Output: buzzer
Power and Battery	3.7 V/7700mAh lithium-polymer battery
Power and Battery	Charges via 5 VDC power supply
Battery Charging Input	5 V/3 A
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-10 to 60°C (14 to 140°F)
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD

	MaxiCOM MK900-TS	MaxiCOM MK900-BT	MaxiCOM MK900	MaxiCOM MK808TS
Read Codes	√	√	√	√
Erase Codes	√	√	√	√
Live Data	√	√	√	√
ECU Information	√	√	√	√
Active Test	√	√	√	√
Service Functions	√(40+kinds)	√(40+kinds)	√(40+kinds)	√(36 kinds)
Complete OBD Diagnositcs	√	√	√	√
Pre & Post Scan	√	√	√	--
Scan VIN	√	√	√	--
Tire Pressure Monitoring System	Complete	Basic	Basic	Complete
Immobilizer Function	Basic	Basic	Basic	Basic
Advanced TPMS Diagnostics for Complete TPMS Health Check	√	--	--	√
Activate All Known TPMS Sensors	√	--	--	√
Program AUTEL MX-Sensors	√	--	--	√
Comprehensive OBD relearn coverage	√	--	--	√
On-screen Relearn Procedure	√	--	--	√
DoIP	√	√	√	--
CANFD	√	√	√	√（optional adapter）
Battery Analysis	√	√	--	√
Videoscope	√	√	√	√
Processor	Quad-core 1.8GHz	Quad-core 1.8GHz	Quad-core 1.8GHz	Quad-core 1.6GHz
Operating System	Android 11	Android 11	Android 11	Android 4.4.4
Memory	4G + 64G	4G + 64G	4G + 64G	1G + 64G
Display	8" LCD	8" LCD	8" LCD	7" LCD
Battery	7700mAh	7700mAh	7700mAh	5000mAh
Internet Updatable	WiFi	Wi-Fi	WiFi	WiFi
Multilingual Support	√	√	√	√
Historical Test Records	√	√	√	√
Save and Playback Data	√	√	√	√
Print Data via Windows PC	√	√	√	√
Vehicle communication method	Wireless (bluetooth)	Wireless (bluetooth)	Wired	Wireless (bluetooth)

Operating System	Android 11
Processor	Quad core Processor(1.8GHz)
Memory	4GB RAM & 64GB ROM
Display	8-inch LCD capacitive touchscreen with 1280x800 resolution
Rear Camera	8 MP
Connectivity	USB Type-C
	USB 2.0
	Wi-Fi
	Bluetooth
	Mini SD card (supports up to 64GB)
Audio Input/Output	Input: N/A
Audio Input/Output	Output: buzzer
Power and Battery	3.7 V/7700mAh lithium-polymer battery
Power and Battery	Charges via 5 VDC power supply
Battery Charging Input	5 V/3 A
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-10 to 60°C (14 to 140°F)
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD

	MaxiCOM MK900-TS	MaxiCOM MK900-BT	MaxiCOM MK900	MaxiCOM MK808TS
Read Codes	√	√	√	√
Erase Codes	√	√	√	√
Live Data	√	√	√	√
ECU Information	√	√	√	√
Active Test	√	√	√	√
Service Functions	√(40+kinds)	√(40+kinds)	√(40+kinds)	√(36 kinds)
Complete OBD Diagnositcs	√	√	√	√
Pre & Post Scan	√	√	√	--
Scan VIN	√	√	√	--
Tire Pressure Monitoring System	Complete	Basic	Basic	Complete
Immobilizer Function	Basic	Basic	Basic	Basic
Advanced TPMS Diagnostics for Complete TPMS Health Check	√	--	--	√
Activate All Known TPMS Sensors	√	--	--	√
Program AUTEL MX-Sensors	√	--	--	√
Comprehensive OBD relearn coverage	√	--	--	√
On-screen Relearn Procedure	√	--	--	√
DoIP	√	√	√	--
CANFD	√	√	√	√（optional adapter）
Battery Analysis	√	√	--	√
Videoscope	√	√	√	√
Processor	Quad-core 1.8GHz	Quad-core 1.8GHz	Quad-core 1.8GHz	Quad-core 1.6GHz
Operating System	Android 11	Android 11	Android 11	Android 4.4.4
Memory	4G + 64G	4G + 64G	4G + 64G	1G + 64G
Display	8" LCD	8" LCD	8" LCD	7" LCD
Battery	7700mAh	7700mAh	7700mAh	5000mAh
Internet Updatable	WiFi	Wi-Fi	WiFi	WiFi
Multilingual Support	√	√	√	√
Historical Test Records	√	√	√	√
Save and Playback Data	√	√	√	√
Print Data via Windows PC	√	√	√	√
Vehicle communication method	Wireless (bluetooth)	Wireless (bluetooth)	Wired	Wireless (bluetooth)
