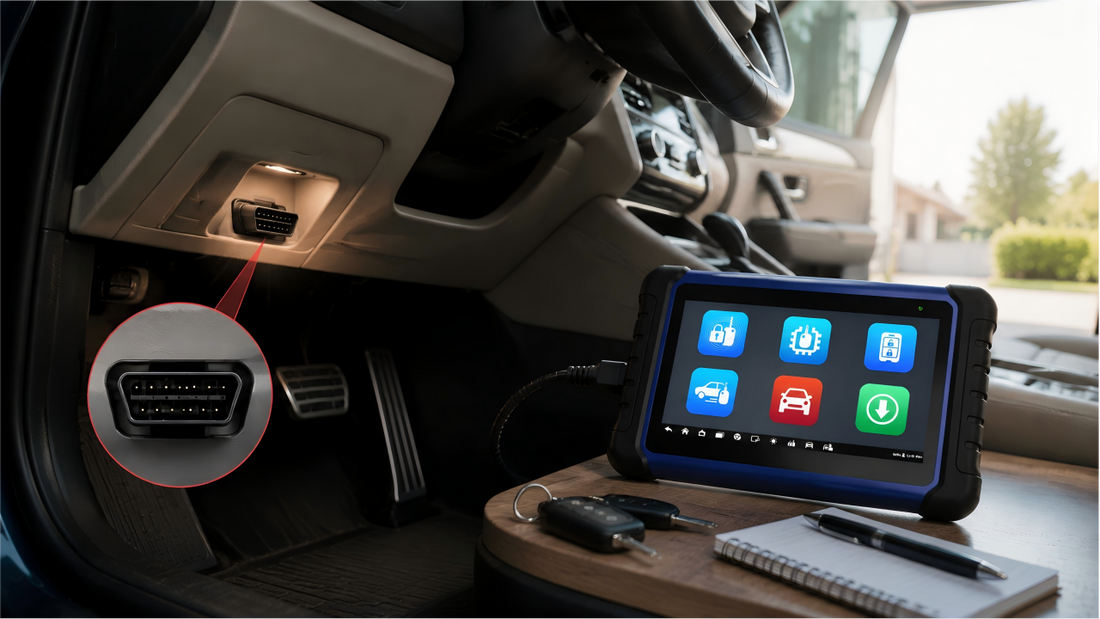

Tucked beneath the dash, right near the driver’s seat, sits a small 16-pin rectangular port. That’s your OBD-II (On-Board Diagnostics) port.

It’s your car’s translator --- turning complex electronic signals into data you can actually read. Let’s pull back the curtain and see how this port becomes your key to fixing cars and saving money.

OBD stands for On-Board Diagnostics. Simply put, it’s the communication port for the car’s main computer (ECU).

• Real-Time Monitoring: While the engine is running, the OBD system watches everything --- emissions, fuel trim, coolant temp, and hundreds of other parameters.
• Fault Memory: If a sensor reads something wrong, the computer saves a Diagnostic Trouble Code (DTC) and turns on the Check Engine Light.
• Standardization: In North America, almost every car built after 1996 uses the same OBD-II standard. Whether you drive a Toyota or a BMW, you plug into the same port.

• Power & Ground: These pins power your scan tool. Just plug it in --- no extra cables needed.
• Communication Lines: Different pins handle different “languages,” like CAN Bus and K-Line, to talk to the car’s systems.
• Manufacturer-Specific: Some pins are reserved for special tasks, like key programming or airbag resets.

3. Why Every Driver Should Care About OBD

4. OBD Tech Evolution: From Cables to Wireless

Forget those bulky old-school tools and long cables. OBD tech has gone wireless.
