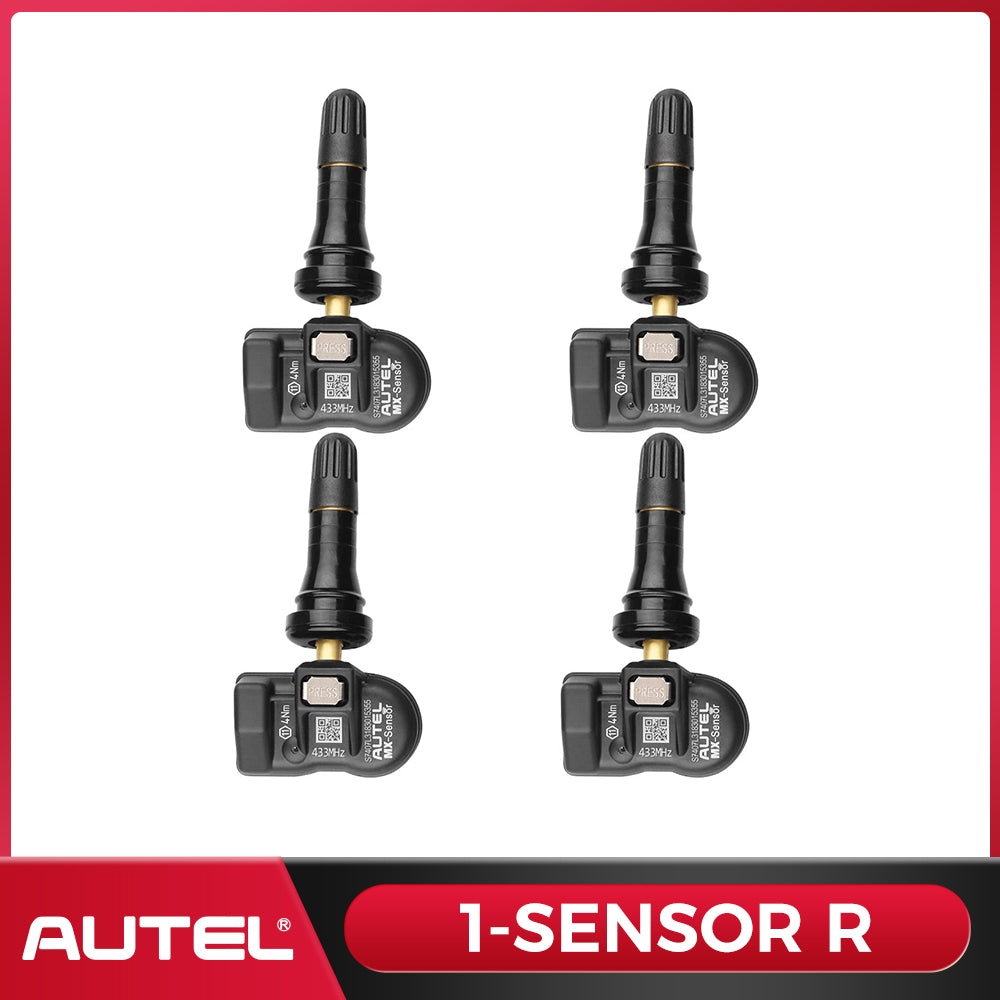

Autel 1-Sensor R combines both 315MHz + 433MHz frequencies into one TPMS sensor with the highest industry vehicle coverage. The exclusive MX-Sensor patented PRESS release valve stem design, allows rubber and metal valve stems to freely interchange by hand, without requiring a tool for sensor head fitting. Built to match or exceed OEM sensors in frequency strength and durability, MX-Sensors are 100% ID clone-able with no relearn required and offer latest model vehicle coverage because they quickly update with an Autel wireless programming tool.
Autel Programmable Universal TPMS MX-Sensor with Dual Frequence 315MHz & 433MHz
- 98% VEHICLE COVERAGE WITH ONLY 1 SKU INVENTORY.
- MAXIMUM SIGNAL STRENGTH.
- LONGEST BATTERY RELIABILITY.
- RUBBER/METAL INTERCHANGEABLE VALVE STEMS.
- LOWER SENSOR WEIGHT
- SAE TESTED & CERTIFIED, STRICT QUALITY CONTROL
note:Delivery rubber and metal sensor randomly, if need require designated sensor, pls contact the customer service.
98% vehicle coverage with only 1 SKU type
Autel Dual Frequency MX-Sensor combines both 315MHz + 433MHz frequencies into one TPMS sensor with 98% vehicle coverage. Nowadays, more and more sensor SKU numbers growing, TPMS dealers and workshop owner are faced with cost problem. This new type sensor will help them reduce inventory, thereby reduce cost. On the workshop level, only need one Sensor to service nearly every TPMS equipped vehicle means lower repair cost and higher install efficiency.
Rubber/Metal interchangeable valves stems
This Dual frequency Sensor is unique press release interchangeable valve stems, will allow interchangeable rubber and metal valves to be easily replaced in the same sensor head by hand, with no valve fitting tool required.
Maximum signal strength, wireless programming
With the powerful sensor signal strength feature, AUTEL Dual MX-Sensor can be easily programmed wirelessly by all AUTEL TPMS tools even when the sensors have already been mounted to the wheel. MX-Sensor is 100% clone-able. No relearn is required when the MX-Sensor is cloned with the original sensor ID and put in the same position.
Superior battery reliability.
With the highest quality materials and advanced TPMS technology, AUTEL Dual MX-Sensor provides superior battery life and reliability, to match OE sensor battery performance.
Sae Tested & Certified, strict quality control
AUTEL high-quality MX-Sensor is tested and certified to meet SAE industry standard J1205 / J1206 testing. Each Autel MX-Sensor has a series number for assuring quality control. The series number is imprinted on the sensor or can be read with Autel TPMS tools. Autel could track the sensor quality from factory manufacturing with the series number, to ensure the highest quality.
Battery Life | 4-6 years |
Operating Temperature | -40��C to +125��C |
Storage Temperature | -40��C to +35��C |
Operating Humidity | ��90% |
Operating Frequency | 315 MHz / 433 MHz |
Pressure Monitoring Range | 0 to 800 kPa |
Pressure Reading Accuracy | ��10 kPa |
Temperature Reading Range | -40��C to +125��C |
Temperature Reading Accuracy | ��5��C |
G Sensor Reading Accuracy | ��15% |
Transmission Power | 5-8 dBm |
Battery | 3.0 V |
Dimensions (W x H x D) | 42.2 mm x 27.9 mm x 17.4 mm |
Weight (Without Valve) | 12 g |
MX-Sensor 1-Sensor Introduction.pdf
MX-Sensors_PR_06282017(US Only).pdf
MX-Sensor 1-Sensor (Press-in) Quick Start Guide_EN.pdf
TS508_V6.19_FunctionList_AU.pdf
TS508_V6.19_FunctionList_EU.pdf
TS508_V6.19_FunctionList_JP.pdf
TS508_V6.19_FunctionList_KR.pdf
